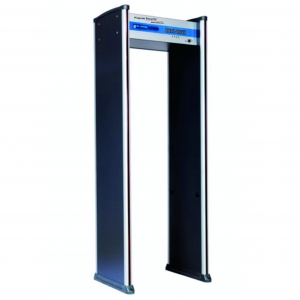

Walkthrough metal detector

Product Abstract:

Airport,Customs clearance of export, import and export of Electronic Science and Technology products Factory, Stadium, Court, Tribunal, Prison prison,Large conference VIP venues, Nightclubs, Bars, and other places of safety check

Product Description



1.Economical and Practical ,Beautiful appearance
2.walk through metal detector body scanner
3.high sensitivityCE certificati


Features and Functions:

1. The whole product is consisted of three parts: Left-right detecting gate + Mainframe +fix ware at the gate.

2. There are 6 detecting areas spreading evenly over the left-right detecting gate boards from its top to bottom, with built-in super shining LED indicating lights; therefore, it is called a “6 positions side light display detecting.


3. On the sides of left-right detecting gate board, there are aluminum alloy strips for protection; with built-in super shining LED indicating lights, it can exactly indicate the exact position of detected item.


4. The control circuit, collecting circuit and calculation circuit are highly integrated, which are especially stable in performance, strong in anti-interference, exact in detecting and free from mistakes in reporting.


5. Has the function of password protection to prevent any hostile change of parameters by any unauthorized person.


6. Has the function of “ Recover systematic parameters by one key “;when you make some mis-operations, you may recover all ex-work settings just by one key.


7. The product can display detecting in sole region or display the detecting of multi regions at the same time. For example, if there are metals in No.3 AND No.5 regions at the same time, the LED indicating lights will turn on in both No.3 and No.5 regions.


8. Has the function of 3-grade audio tones adjustment, adapting to different usage environments.


9. Eight work frequency spots are set up in an array; standard distance to assemble the gates is 50CM.


10. Information will be marked down on the front panel e.g. number of persons passed-by, times of alarm, strength of interfering signals, etc.


11. Sole detecting area can adjust its sensitivity privately, without coordination to adjust the overall sensitivity; it can be adjusted in 100 degrees within its scope; therefore, it can meet customer’s demand to reject the items e.g. belt buckle, gold or silver jewelry, ect.


12. The product does no harm to cardiac pacemaker in human body, hearing aid, pregnant woman and CD compact disc, ect.




Technical parameters

(1) standard: "GB 15210-1994. Through-type metal detector door general technical conditions" national standards.

 (2) detection procedures: 100 sensitivity adjustment may be required on different occasions


to meet separately.

(3) basic safety: meeting the requirements of GB4793.

 (4) personal safety: Satisfied NILECJ-0601.

(5) through rate: more than 60 million / per minute.


(6) Power: 220V AC, 50/60Hz.

(7) Power: 35VA.

(8) working environment: -10 ~ 45 , 95% RH.

(9) Overall dimension: 2220 mm (high) × 820 mm (width) × 500 mm (deep).

(10) Channel Size: 2000 mm (high) × 700 mm (width) × 500 mm (deep),






With ISO9001:2008 International Quality System Certification


Our Factory is below to Guangdong Government Support Enterprise


With Imports and Export Right


CE certification


With Chinese Security Inspection Report
