X ray baggage scanner
Model: PD-6550 ------Typical Steel penetration 34mm

General Specification
? Tunnel Size: 650(W)*500(H)mm
? Conveyor Speed: 0.22m/s
? Conveyor Max Load: 170kg
? Dose per Inspection <1.4Gy/h
? Resolution < 0.0787mm Copper Wire
? Spatial resolution Level: dia1.0mm,
Vertical: dia1.0mm
? Penetrate resolution: Dia 0.254mm
? Penetration: 34mm Steel
? Film Safety Guarantee ISO1600 Film
? X-ray Leakage: <0.05 μGy/h (at a distance of 5cm From external housing)

X-ray Generator
? Generate direct: Upward
? Generate anger: 80 degree
? Anode Voltage: 100~160Kv
?Anode power: 0.4 to 1.2mA
? Cooling / Duty Cycle: Oil Cooling /100%

Image System
? X-ray Sensor: L-Shaped Photodiode Array (multi-energetic) , 12bit Deep
? Monitor: High Resolution Color, LCD Accord, 17 inch
? Image Processing: Edge enhancement, image strengthening, image lightening,, reducing darkening, image returning, image retrieval.
? Image Grey Level: 4096
? Image Max Resolution: 1024 * 1280 pixel
? Image Processing: 24bit for processing real time
? Image storage: Storage 60000 pictures in real time
? Zones & Zoom: 1-9 Image regions, 2,4,8,16 Times Enlarge, Whole screen continuous observation

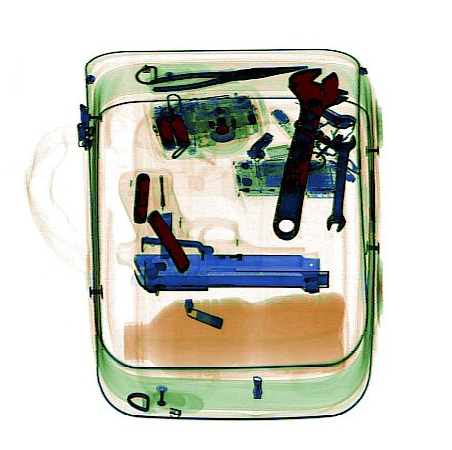

? Multi-energetic distinguish objects : organic objects in orange, inorganic objects in blue, mixture in green
? High-energy/low energy : switch from high energy to low energy
? Assist to detect drug and explosive powder

Installation Data
? Operation temperature/Humidity: 0?-45?/20%-95%(non-condensing)
? Storage Temperature/Humidity:  -20?-60?/20%-95%(non-condensing)
? Operation Power: 220VAC(±10%)50±3Hz
? Power Consumption: 1.0 KW (max), 0.7KW(working)
? Noise: <58db
